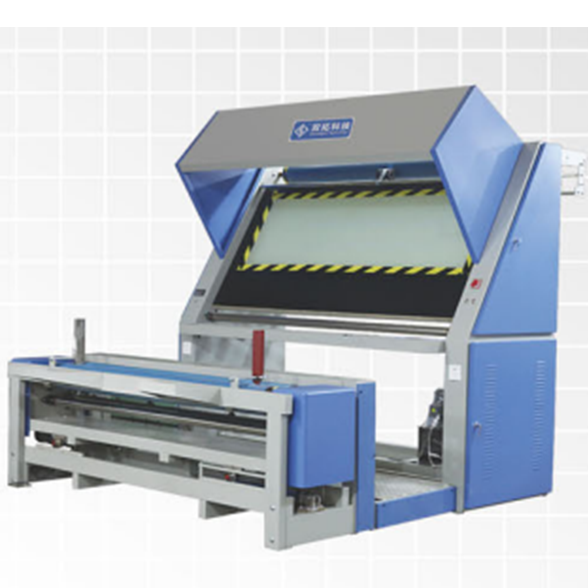

ST-YG903 Automatic cloth edge checking inspection machine
Application:
Apply to the apparel factories, artificial fur factories, wall cloth factories, home textile factories, artificial leather factories and commodity inspection units to inspect the cloth. , allowing the input fabric by round rolls or folded fabrics. This machine is especially suitable for inspecting the fabric to export.
Performance features:
-. Inverter stepless speed control the machine speed
-. Hydraulic control for automatic edge alignment;
-. Adopts electronic fabric length counter,
-. The machine body adopts aisle structure, which is convenient for fabric inspection and repairing defects.
-. Optional electronic scale and fabric cutter.
Major specifications and technical parameters:
| Working width: | 2200mm-3600mm |
| Rolling up speed: | 5-55m/min( stepless ) |
| Edge-aligning error: | ≤6mm |
| Max. error for fabric length -counter: | 0.5% |
| Machine dimension: | 3050 x 2630 x 2430mm/ 3050 x 3230 x 2430mm |
| Machine weight: | 1100kg/ 1400kg |
