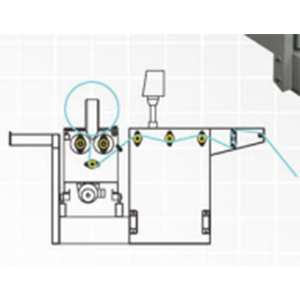

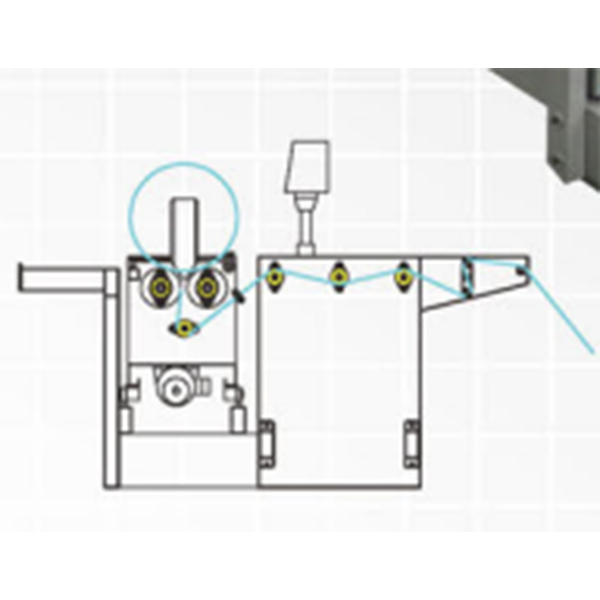

ST-G952 Platform type inspection machine
Application:
This machine is mainly to inspect fabric, repair the defect fabric and roll up fabrics in printing & dyeing factories, garment factories, home textile factories, and commodity inspection units, etc..
Characteristic:
-. Inverter stepless speed control to control the inspection speed, control infrared ray align the fabric edges.
-. Electronic counter (can be corrected, fixed-length to stop and can display working speed);
-. Use the rollers’ different speed to adjust the tightness of the inspected fabric
-. Adopting a flat-type inspection table allows the operators to inspect and repair cloth on both sides of the machine.
-. Machine both sides with foot switches for user easy to control the machine running or stopping, which is convenient for the operator to inspect and repair the cloth.
Major specifications and technical parameters:
Working speed: | 0-6m/min |
Max. Cloth roll diameter: | 154mm |
cloth diameter: | 500mm |
Winding edge align error: | ±0.5% |
Inspection platform: | Flat inspection table |
Working width: | 1600-1700mm |
Machine Dimension: | 3345x1920x1170mm/ 3345x2020x1170mm |
Machine Weight: | 650kg/ 700kg |
