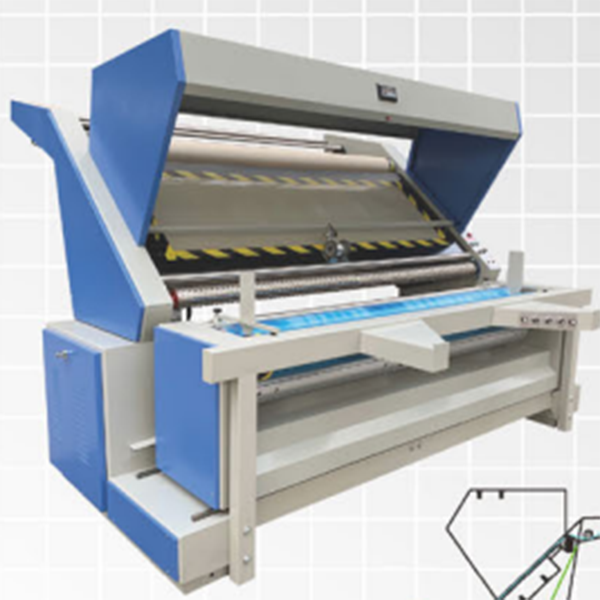

ST-G9288 Double frequency conversion fabric inspection machine
Application:
This machine is mainly used for inspection & roll up the textiles fabric, printing & dyeing fabric, garments, synthetic leather, knitting products and low gram weight non-woven fabrics.
Structure and performance of the machine:
1.Adopt dual-frequency control to inspect the tension of the fabric. The tightness of the fabric could be adjusted randomly。
2.Equipping hydraulic system and infrared ray to check the fabric edge to edge are more sensitive and alignment.
3.Using gear motor as main motor
4.Adopt domestic advanced electronic fabric length controller.
5.Optional electronic scale and fabric cutter.
Major specifications and technical parameters:
| Applicable width: | 1800mm, 3200mm |
| fabric diameter: | ≤600mm |
| Inspecting speed: | 0-70m/min |
| Correcting fabric edge type: | Hydraulic |
| Rectification precision: | ±03mm |
| Metering error: | ≤0.4% |
| Constant tension speed range: | 0~400N |
| Main motor power: | 0.75~2.2KW |
| Machine weight: | 1000kg(Weight changes according machine width) |
| Machine dimension(L*W*H): | 2800*2100*2300mm/ 4000*2100*2300mm |
