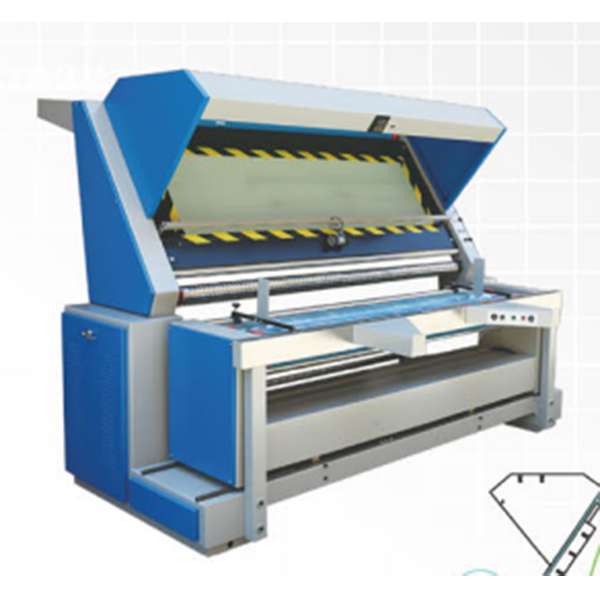

ST-G9188 Double frequency conversion fabric inspection machine

Short Description:


  • Place of Origin: Fujian,China
  • Certification: CE
  • Package: Wooden Cases
  • Warranty: One Year Guaranteed
  • Incoterms: FOB,CFR,CIF,EXW
  • Payment Terms: L/C,D/A,D/P,T/T or To be negotiated
  • Product Detail

    Product Tags

    Application:
    This machine is mainly used for inspection & roll up the textiles fabric, printing & dyeing fabric, garments, synthetic leather, knitting products and low gram weight non-woven fabrics.

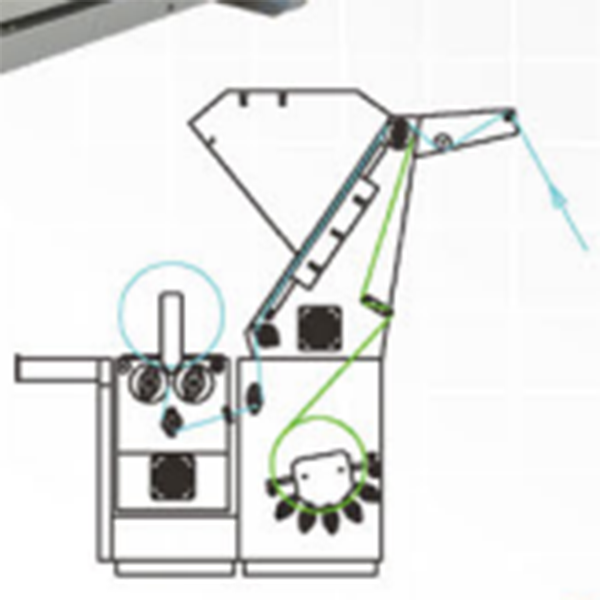

    Structure and performance of the machine:
    1.Adopt dual-frequency control to inspect the tension of the fabric. The tightness of the fabric could be adjusted randomly。
    2.Equipping hydraulic system and infrared ray to check the fabric edge to edge are more sensitive and alignment.
    3.Using gear motor as main motor
    4.Adopt domestic advanced electronic fabric length controller.
    5.Optional electronic scale and fabric cutter.

    Major specifications and technical parameters:

    Applicable width:
     1800mm, 3200mm
    fabric diameter:  ≤600mm
    Inspecting speed:  0-70m/min
    Correcting fabric edge type:  Hydraulic
    Rectification precision:   ±03mm
    Metering error:  ≤0.4%
    Constant tension speed range:  0~400N
    Main motor power: 0.75~2.2KW
    Machine weight: 1000kg(Weight changes according machine width)
    Machine dimension(L*W*H): 2800*2100*2300mm/ 4000*2100*2300mm
