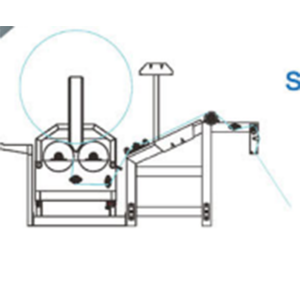

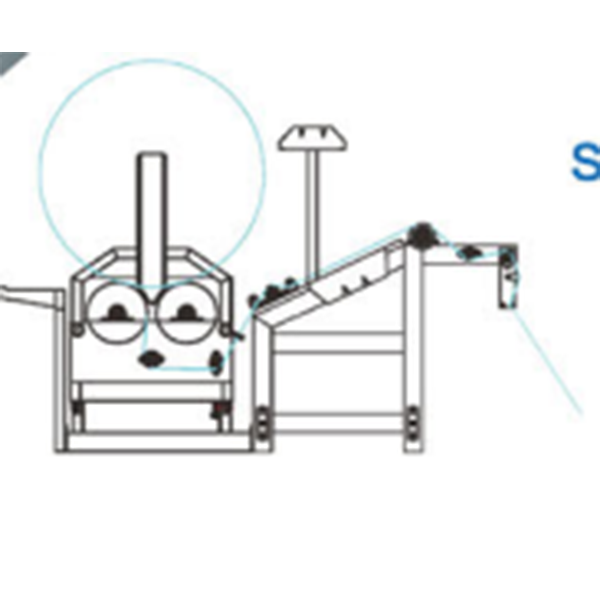

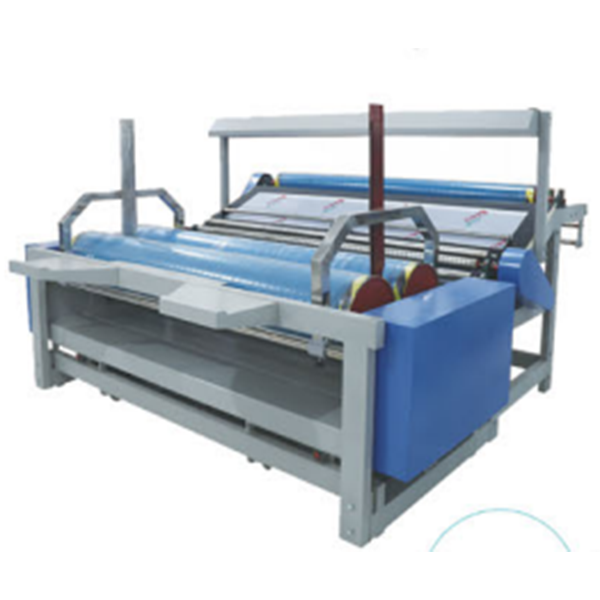

ST-G602 giant batch cloth inspection & rolling machine
Application:
It’s suitable for inspecting the cloth which in middle process or from small rolls rolling into a large roll for the next process. such as the process of coating, compounding etc., or for inspecting the large roll of the finished fabric.
Technical features:
Front and rear transmission of cloth inspection and rolling, compact structure and easy operation. Photoelectric hydraulic automatic edge alignment accuracy. Equipped front and back motors to drive to make the cloth tension adjustable.
Major specifications and technical parameters:
| Speed: | 0-70m / min, cloth could run forward or reverse and non-step speed change |
| working width: | 1800-2400mm |
| Cloth Roller diameter: | ≤1200m |
| Length deviation: | ≤0.4% |
| Main motor: | 3HP |
| Dimension: | 2800mm(L)x2380mm~2980mm(W)x2100mm(H) |
