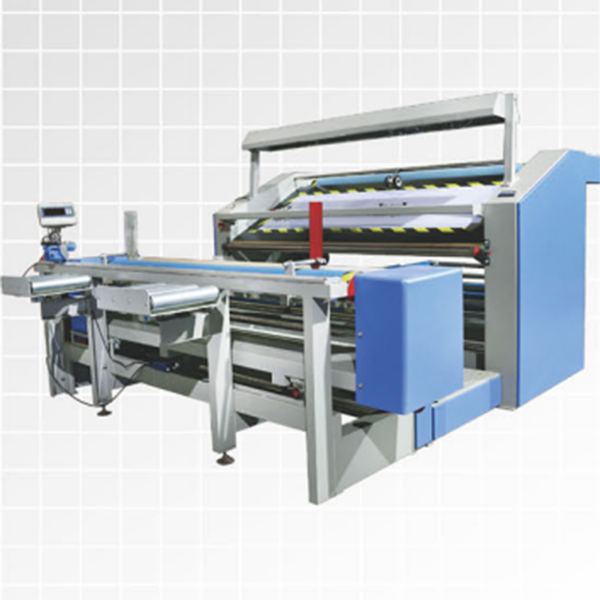

ST-G156 Automatic edge checking cloth rolling machine
Application:
These machines are mainly used for some kinds of knitting fabric, woven cloth, finished cloth inspection.
It can be equipped with electronic scale, computer and hand/automatically cloth cutter.
Technical features:
-. With box structure for machine body and electrostatic painting, it looks more beautiful.
-. Speed adjust properly for cloth by double frequency conversion continuously variable transmission
-. Stainless steel widening roller efficiently smooth the cloth edge
-. Adopt Infrared ray edge control system and hydraulic tracking device, it could automatically adjust the uniformity of the cloth edge.
-. This machine adopts aisle type structure.
-. optional electronic scale and fabric cutter
Major specifications and technical parameters:
Machine size: | 3350*2100*1800MM |
Power supply voltage: | 3 phase, 4 cables, 380V/50HZ |
Motor power: | 2.2KW |
Maximum cloth diameter: | 450mm |
Edge-aligning error: | ±5mm |
Work width: | 2300mm, 2500mm, 2700mm(support customized width) |
