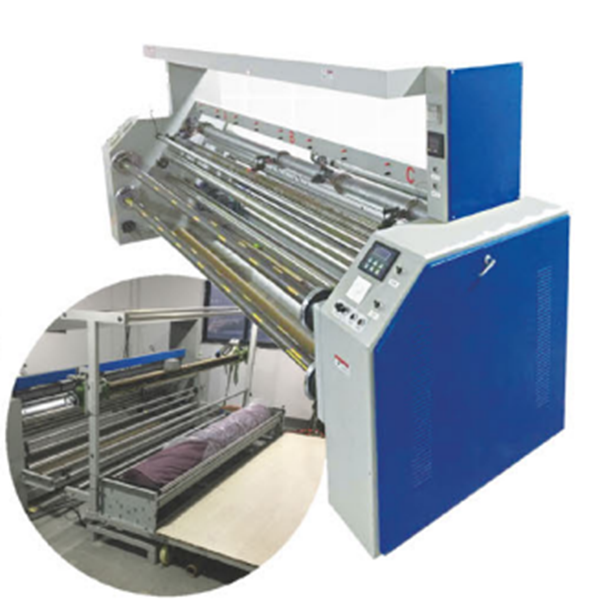

ST-321R/Q tape divider
Features:
1. R type hot cut is suitable for nipped-up cloth edge of chemical fiber fabrics, the L-type cold cut is suitable for slitting the cotton fabric.
2. The unwinding tension is passively controlled by the stop magnetic powder clutch, which is manually adjusted.
3. Both sides are equipped with waste edge batching device.
4. Using the most advanced electronic length counter in China, it with highly accuracy.
5. Hydraulic knife easy to control the knife raise and put down.
Major specifications and technical parameters:
| Applicable width: | 1800mm ~ 3600mm |
| Take-up diameter: | <350mm(more than 350mm need customized) |
| Minimum cutting width: | 35mm |
| Cutting speed: | 0-50m/min(frequency converter control) |
| Correction type: | Hydraulic |
| Main power: | 1.5+2.2(kw) |
| Machine power: | <4kw(according to the heating knife) |
| Tension control: | Dual frequency converter+ Magnetic powder clutch |
