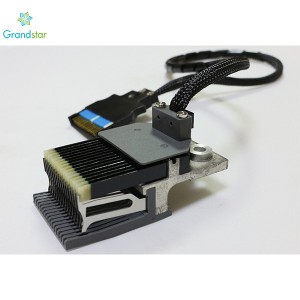

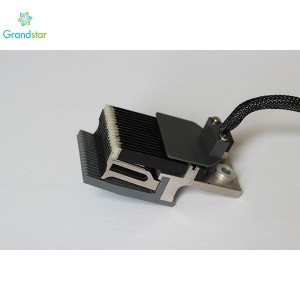

Piezo Jacquard EFS Warp Knitting Spare Parts For Jacquard Fabric Textile Machinery
Quick Details
| Place of Origin: | Fujian,China (Mainland) | Color: | Random |
| Brand Name: | Grandstar | Material: | Metal |
| Export Market: | Global | Package: | Negotiated |
| Certification: | ISO9001 | Quality: | Guaranteed |
Supply Ability
Supply Ability:
50000 Set/Sets per Month
Packaging & Delivery
Packaging Details
The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
Port
FUZHOU
Lead Time :
| Quantity(Sets) | 1 – 2 | >2 |
| Est. Time(day) | 20 | To be negotiated |
The Jacuqard bars are used in Warp Knitting Machines, it could embedded into the related German Textile Machinery. We produce these kinds of Jacquard Bar: E2, E3, E6, E8, E10, E12, E14, E18, E20, E24, E28, E30, E32, E34, etc.
1. Compare with the traditional Electromagnetic Jacquard:
|
Type: |
Electromagnetic Jacquard |
|
|
Working speed: |
400r/MIM |
1300r/MIM |
|
Powerper set: |
8kw |
1.5kw |
|
Capability: |
Easy to be destroyed |
Reliable |
|
EMI: |
YES |
NO |
|
Volume: |
Large |
1/8 of electromagnetic type |
2. Application:
(1)Jacquard raschel machine
(2)Multibar Raschel machine
(3)Double-needle bar Raschel machine
(4)High-speed tricot machine
3. Principle:
Piezo element are used on the knitting machines for the displacement of the Jacquard. The consists of two piezo ceramics which are isolated from each other with a layer of glass fibers.
Piezo ceramics have the property to deform itself if a voltage is set. A voltage of about 200V is set alternatingly on each side of the piezo element with switching. The piezo ceramics deforms itself and displace the needle to the left-or the right-hand side of the Jacquard guide.
4. Specification:
|
Gauge: |
E14 |
E16 |
E18 |
E20 |
E22 |
E24 |
E28 |
E32 |
|
Needle Pitch(mm): |
3.63 |
3.17 |
2.82 |
2.54 |
2.31 |
2.12 |
1.81 |
1.59 |
|
Width(mm): |
58.0 |
50.8 |
45.1 |
40.6 |
36.9 |
33.9 |
28.9 |
25.4 |
