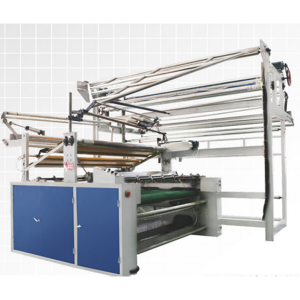

HS-93888 INSPECTING-ROLLING MACHINE
APPLICABLE SCOPE:
HS-93888 is a tension equalizing inspecting-rolling machine. It adopts the most advanced technology of Korea. EPC integrating the angle control and sense, so that feed roller and take-up roller can give feedback for frequency converter in time, ensure that the tension is always equalizing even if the changed speed and diameter of the take-up roller.
This machine meet the demand which unable to achieve to inspect knitted fabric, non-woven fabric, lapping cloth, high elastic fabric, easy broken fabric and shrinkage fabric in normal inspecting-rolling machine.
Technical parameters:
| Applicable width | 72″ – 126″ (1800mm-3200mm) |
| Rolling and inspecting speed | 0-80m/min (0-87.5yd./min) |
| Checkout console plate | Black, at horizontal angle 65 degree (under light box is an optional) |
| edge align precision | The length of movement>300mm; edge align precision<5mm |
| Length unit | M |
| The repetition of the length | ≤0.2% |
| Metering error | ≤0.40% |
| The adjustment scope of tension equilibrium | 0-400N |
| Power | 2.5km |
| Fabric applicable | ≤200g |
