HKS-4 (EL) Tricot Machine with 4 Bars

Short Description:

Brand: GrandStar

Place of Origin: Fujian,China

Certification: CE

Incoterms: EXW,FOB,CFR,CIF,DAP

Payment Terms: T/T, L/C or To be negotiated

Model: HKS 4-M (EL)

Ground Bars: 4 Bars

Pattern Drive: EL Drives

Machine Width: 290"/320"/340"/366"/396"

Gauge: E24/E28/E32

Warranty: 2 Year Guaranteed

Send email to us Download as PDF

Product Detail

SPECIFICATION

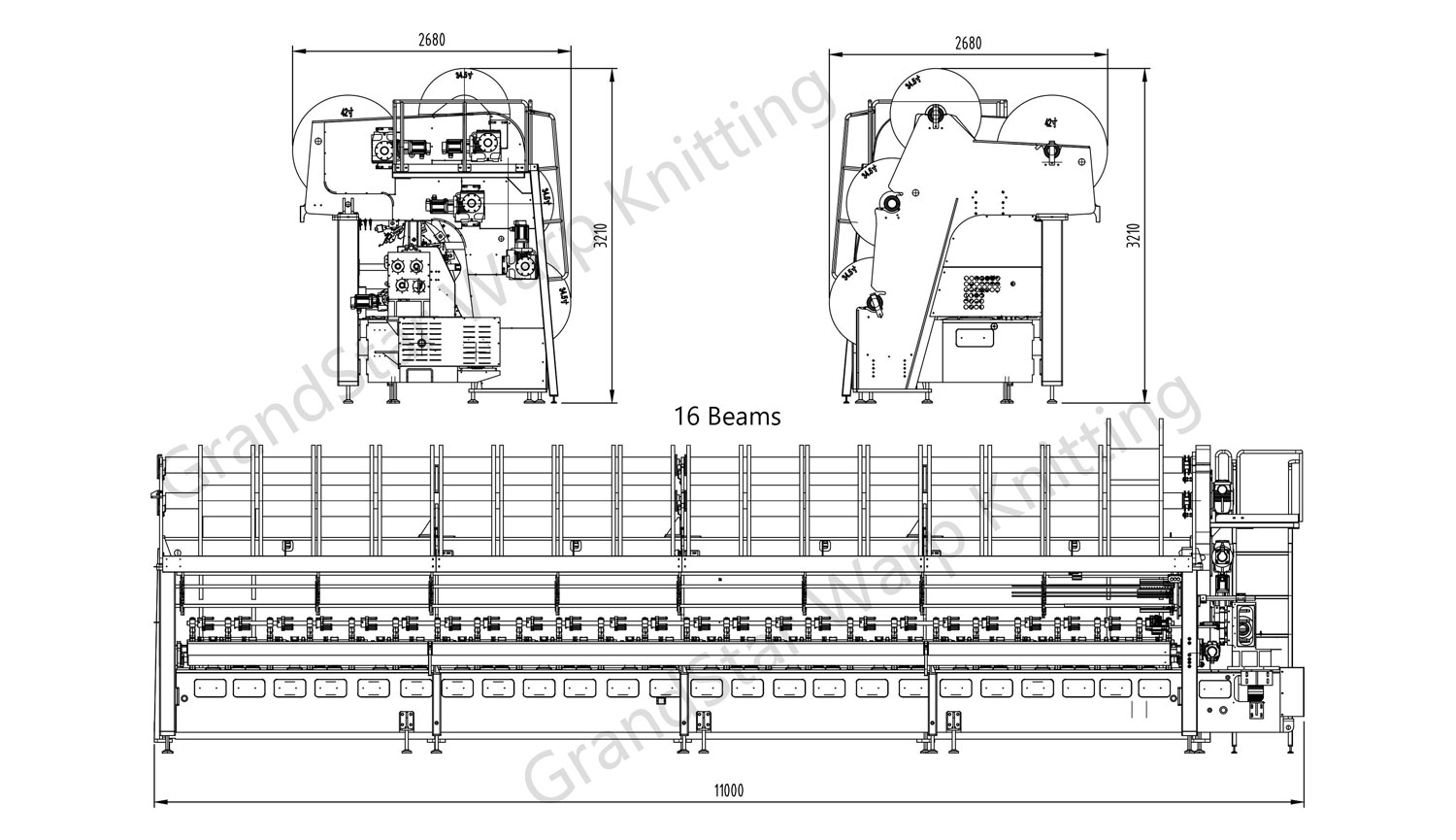

TECHNICAL DRAWINGS

RUNNING VIDEO

APPLICATION

PACKAGE

HKS 4-EL: Precision, Flexibility, and Performance Redefined

Unmatched Versatility in Warp Knitting

Engineered for both elastic and non-elastic net textiles, the HKS 4-EL is designed to meet the evolving demands of high-performance textile applications.
This exceptionally economical Tricot machine delivers unmatched precision, speed, and versatility, making it the preferred choice for manufacturers seeking innovation and efficiency.

Key Advantages

1. Cutting-Edge EL System: Unlocking Zig-Zag Pattern Technology

At the heart of the HKS 4-EL lies an advanced EL servo drive system, delivering unparalleled patterning flexibility.
This groundbreaking technology enables the seamless creation of intricate zig-zag patterns, pushing the boundaries of textile design.
Unlike conventional machines that sacrifice speed for complexity, the HKS 4-EL excels in both—allowing manufacturers to achieve high-speed production without compromising creative control.

2. Unlimited Lapping Potential: The GrandStar Advantage

Traditional warp knitting machines impose a 36-stitch limitation on lapping options, restricting design possibilities.
The HKS 4-EL eliminates these constraints with the GrandStar System, enabling the creation of fully customized, complex patterns without any limitations.
This revolutionary innovation empowers textile manufacturers to explore unparalleled design freedom, setting new benchmarks in the industry.

Your Benefits

✔ Versatile high-performance knitting – catering to diverse textile applications.
✔ Superior price-performance ratio – maximizing value and cost-efficiency.
✔ Unmatched production speed – achieving extraordinary efficiency.
✔ Advanced carbon-fibre technology – ensuring cutting-edge performance.
✔ Extended service life – delivering long-term investment value.
✔ Ergonomic machine design – enhancing usability and operational ease.
✔ Next-generation GrandStar® interface – for seamless, intuitive operation.
✔ Consistently high-quality output – setting professional industry standards.

The HKS 4-EL is more than just a warp knitting machine—it is an investment in the future of textile innovation.
Designed for efficiency, durability, and precision, this machine empowers manufacturers to unlock limitless possibilities in modern textile production.

Previous: GS-RD5 DPLM 20-50 EN

Next: HKS-4-T (EL) Tricot Machine For Terry Towel

GrandStar® Warp Knitting Machine Specifications

Working Width Options:

4724mm (186″)
7366mm (290″)
8128mm (320″)
8636mm (340″)
9296mm (366″)
10058mm (396″)

Gauge Options:

E28 and E32

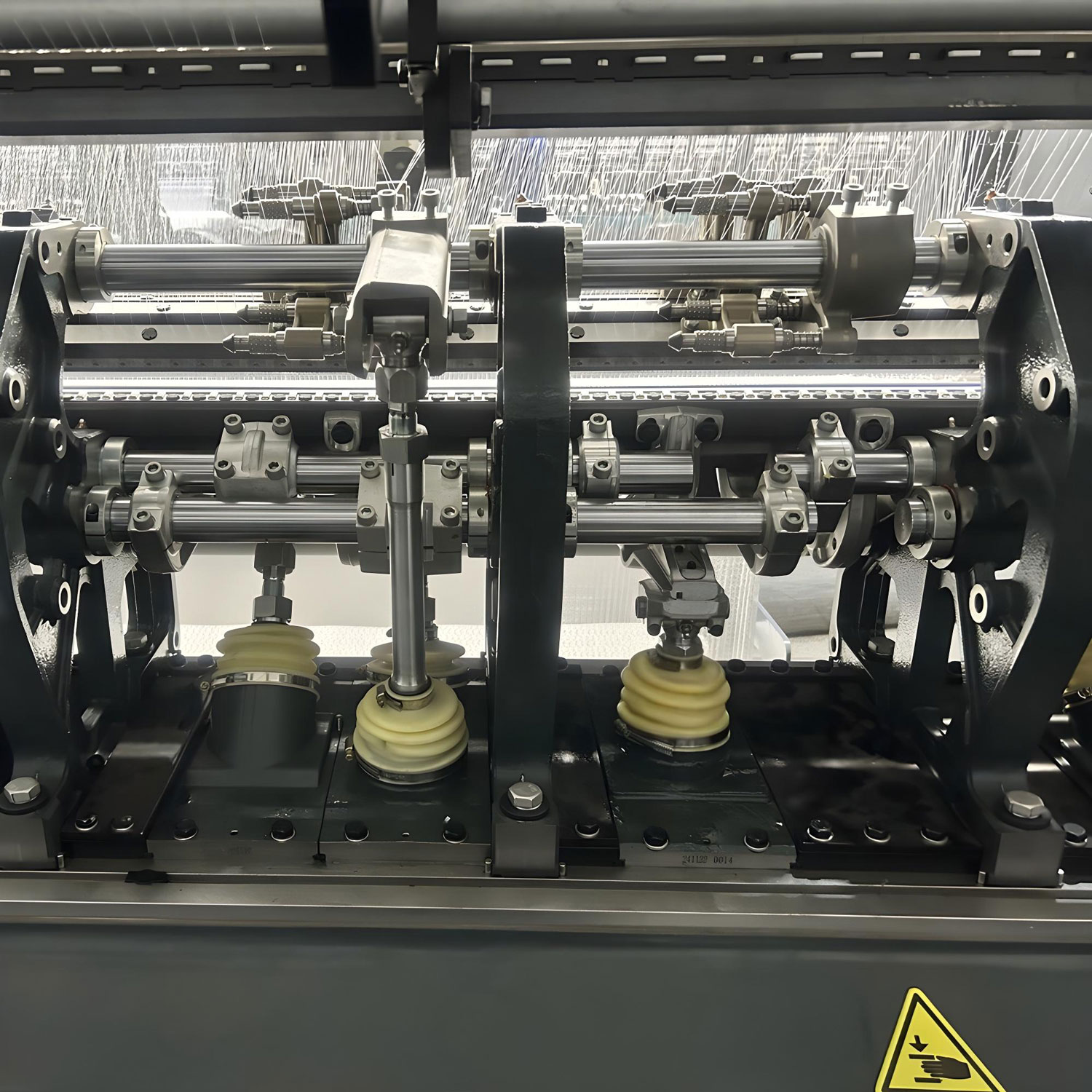

Knitting Elements:

Needle Bar: 1 individual needle bar utilizing compound needles.
Slider Bar: 1 slider bar with plate slider units (1/2″).
Sinker Bar: 1 sinker bar featuring compound sinker units.
Guide Bars: 4 guide bars with precision-engineered guide units.
Material: Carbon-fiber-reinforced composite bars for superior strength and reduced vibration.

Warp Beam Support Configuration:

Standard: 4 × 812mm (32″) (free-standing)
Optional:
- 4 × 1016mm (40″) (free-standing)
- 1 × 1016mm (40″) + 3 × 812mm (32″) (free-standing)

GrandStar® Control System:

The GrandStar COMMAND SYSTEM provides an intuitive operator interface, allowing seamless machine configuration and precise electronic function control.

Integrated Monitoring Systems:

Integrated Laserstop: Advanced real-time monitoring system.
Integrated Camera System: Provides real-time visual feedback for accuracy.

Yarn Let-Off System:

Each warp beam position features an electronically controlled yarn let-off drive for precise tension regulation.

Fabric Take-Up Mechanism:

Equipped with an electronically regulated fabric take-up system driven by a high-precision geared motor.

Batching Device:

A separate floor-standing cloth rolling device ensures smooth fabric batching.

Pattern Drive System:

Standard: N-drive with three pattern discs and integrated tempi change gear.
Optional: EL-drive with electronically controlled motors, allowing guide bars to shog up to 50mm (optional extension to 80mm).

Electrical Specifications:

Drive System: Speed-regulated drive with a total connected load of 25 kVA.
Voltage: 380V ± 10%, three-phase power supply.
Main Power Cord: Minimum 4mm² three-phase four-core cable, ground wire no less than 6mm².

Oil Supply System:

Advanced oil/water heat exchanger ensures optimal performance.

Operating Environment:

Temperature: 25°C ± 6°C
Humidity: 65% ± 10%
Floor Pressure: 2000-4000 kg/m²

Knitting Speed Performance:

Achieves exceptional knitting speeds of 2000 to 2600 RPM for high productivity.

Experience precision and innovation with GrandStar® Warp Knitting Machines – engineered for excellence.

Crinkle Fabrics

Warp knitting combined with crinkling techniques creates warp knitting crinkle fabric. This fabric features a stretchy, textured surface with a subtle crinkled effect, achieved through an extended needle bar movement with EL. Its elasticity varies based on yarn selection and knitting methods.

Sports Wear

Equipped with the EL system, GrandStar warp knitting machines can produce athletic mesh fabrics with varying specifications and structures, tailored to different yarn and pattern requirements. These mesh fabrics enhance breathability, making them ideal for sportswear.

Sofa Velevet

Our warp knitting machines produce high-quality velvet/tricot fabrics with unique pile effects. The pile is created by the front bar (bar II), while the rear bar (bar I) forms a dense, stable knitted base. The fabric structure combines a plain and counter notation tricot construction, with ground guide bars ensuring precise yarn positioning for optimal texture and durability.

Automotive Interior

Warp knitting machines from GrandStar enable the production of high-performance automotive interior fabrics. These fabrics are crafted using a specialized four-comb braiding technique on Tricot machines, ensuring durability and flexibility. The unique warp knitting structure prevents wrinkling when bonded with interior panels. Ideal for ceilings, skylight panels, and trunk covers.

Shoes Fabrics

Tricot warp knitted shoe fabrics offer durability, elasticity, and breathability, ensuring a snug yet comfortable fit. Engineered for athletic and casual footwear, they resist wear and tear while maintaining a lightweight feel for enhanced comfort.

Yoga Clothing

Warp-knitted fabrics offer exceptional stretch and recovery, ensuring flexibility and freedom of movement for yoga practice. They are highly breathable and moisture-wicking, keeping the body cool and dry during intense sessions. With superior durability, these fabrics withstand frequent stretching, bending, and washing. Seamless construction enhances comfort, minimizing friction.

Waterproof Protection

Each machine is meticulously sealed with sea-safe packaging, providing robust defense against moisture and water damage throughout transit.

International Export-Standard Wooden Cases

Our high-strength composite wooden cases fully comply with global export regulations, ensuring optimal protection and stability during transportation.

Efficient & Reliable Logistics

From careful handling at our facility to expert container loading at the port, every step of the shipping process is managed with precision to guarantee safe and timely delivery.
