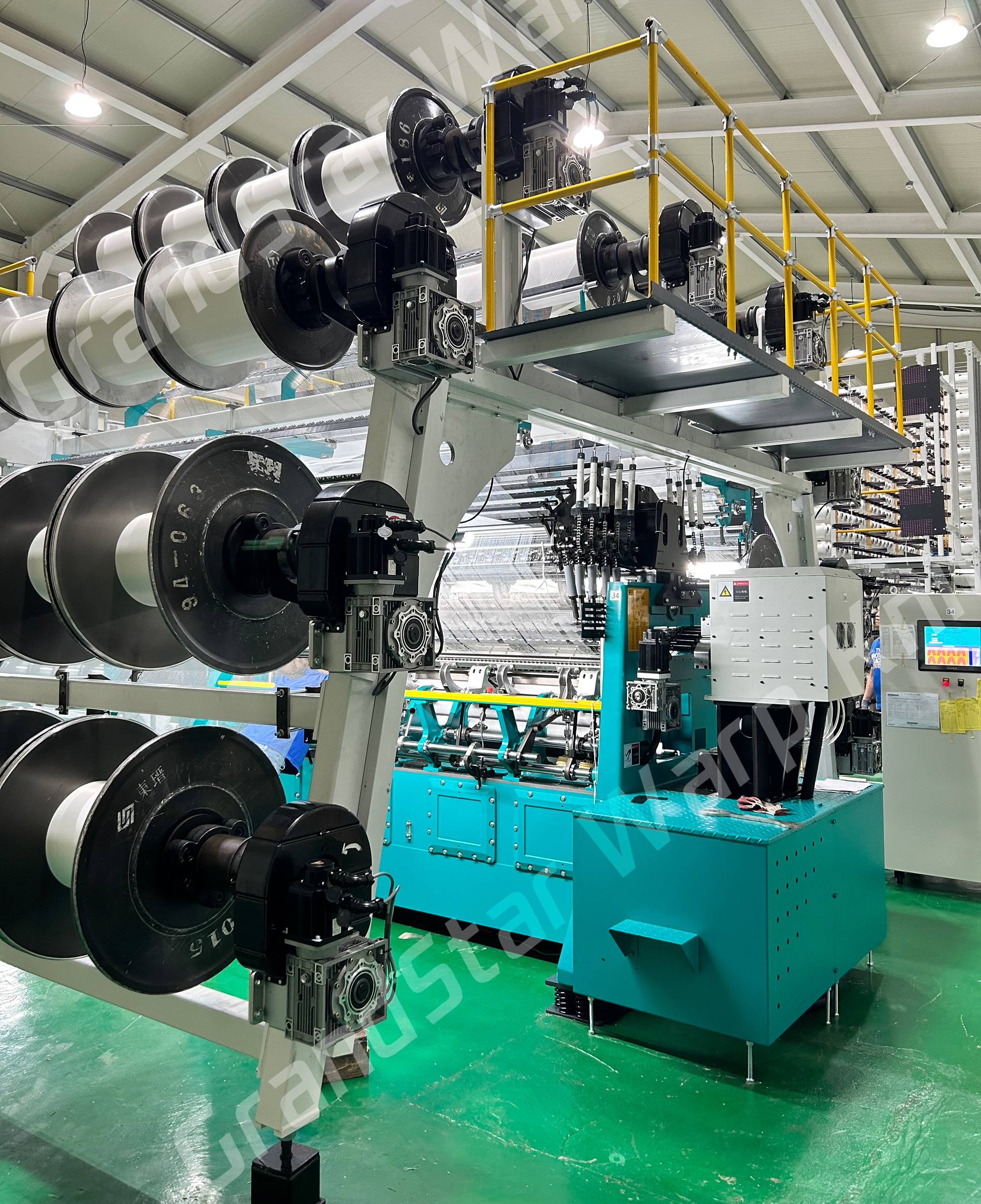

GS-RDPJ7-2 (EL) Double Raschel Warp Knitting Machine
Technical data:
- Working width / Gauge:
3454 mm = 136″
E18, E22, E24, E28
- Knock-over comb bar distance:
2–12 mm, continuously adjust able. Central trick plate distance readjustment

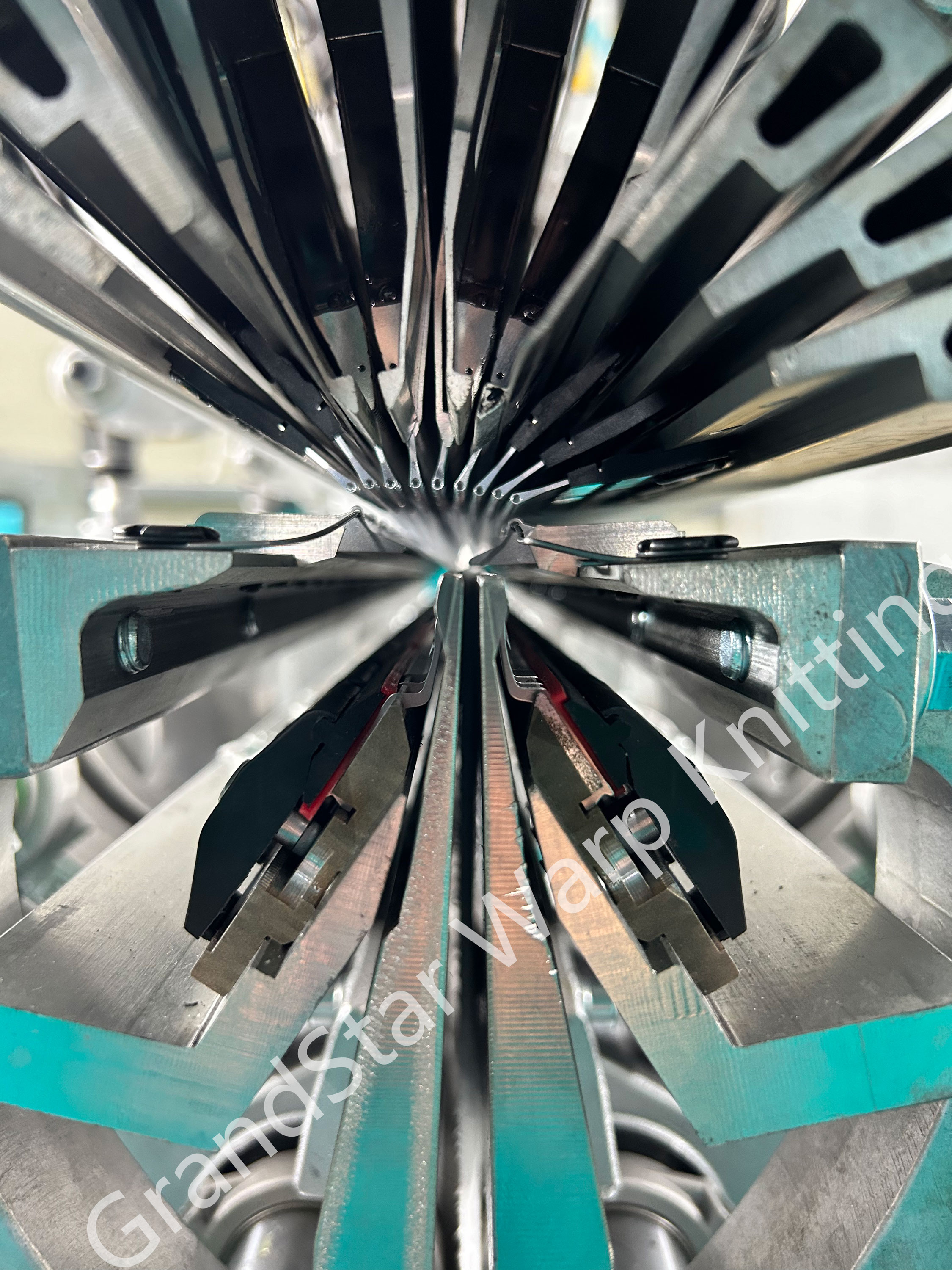

- Bars / knitting elements:
Six ground guide bars, one Piezo Jacquard guide bar (split execution);
GB3, GB4, JB5 and JB6 stitch forming on both needle bars.
Two individual latch needle bars, two knock-over comb bars, two stitch comb bars

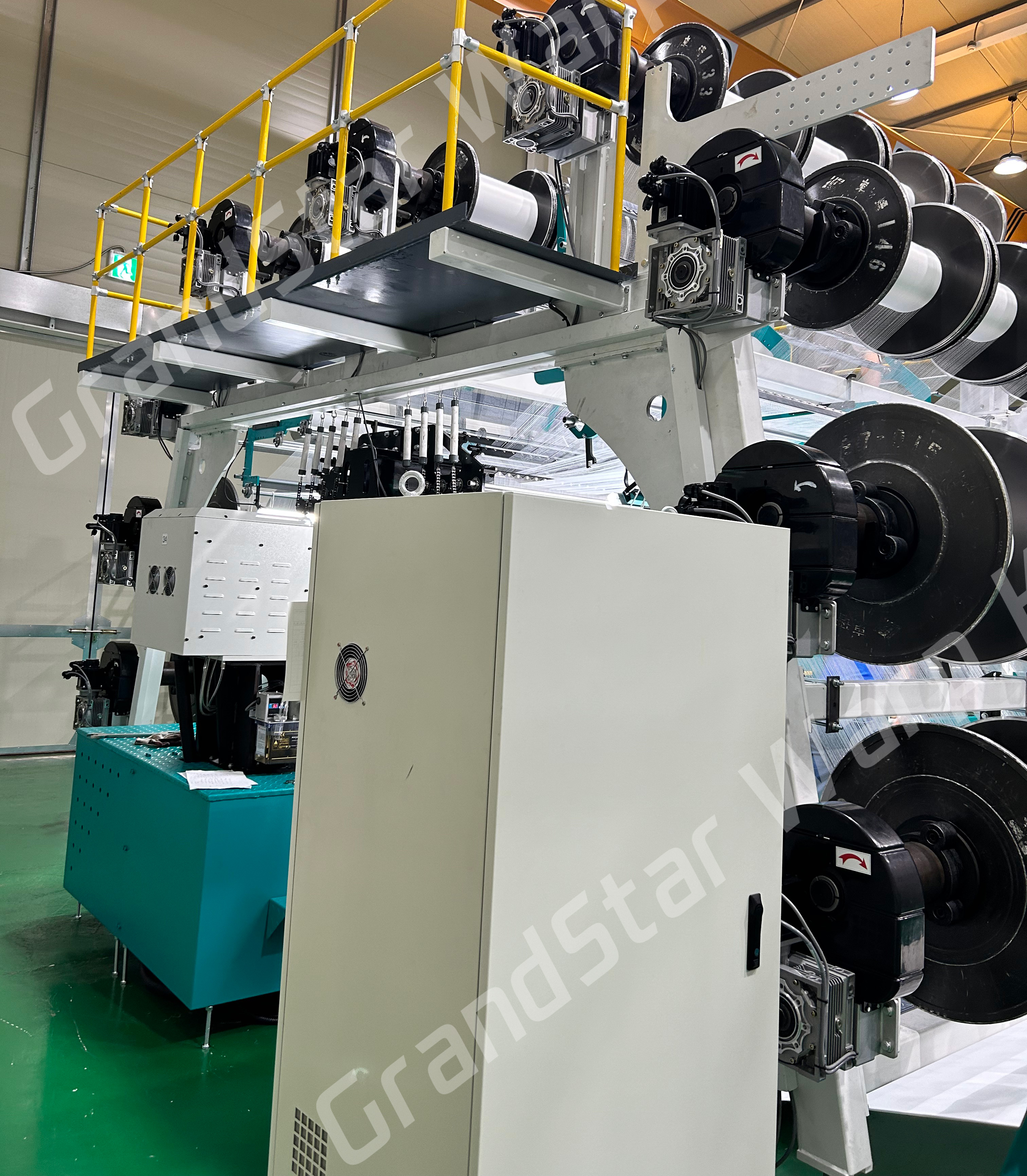

- Warp beam support:
7 × 812 mm = 32″ (free-standing)
- GrandStar® (GrandStar COMMAND SYSTEM)
Operator interface to configure, control and adjust the electronic functionality of the machine
- Yarn Iet-off device
For each completely mounted warp beam position: one electronically controlled yarn Iet-off drive
- Fabric take-up
Electronically regulated fabric take-up, driven by geared motor, consisting of four rollers.
- Batching device
Separate rolling device
- Pattern drive
Electronic guide bar drive EL, all guide bars shog up to 150 mm
- Electrical equipment
Speed-regulated drive, total connected load of the machine: 7.5 KW
Voltage: 380V±10% three-phase power supply, main power cord requirements: not less than 4m㎡ three-phase four-core power cord, ground wire not less than 6m㎡
- Oil supply
Heating and cooling by means of circulating air heat exchanger, filter with dirt-monitoring system
- Equipment working conditions
Temperature 25℃±3℃, humidity 65%±10%
Floor pressure: 2000-4000KG/㎡
